2015-2021 Honda TSXS500M2 Pioneer 500 Cylinder Jug Piston Rings Gasket Top End Kit
2015-2021 Honda TSXS500M2 Pioneer 500 Cylinder Jug Piston Rings Gasket Top End Kit
Couldn't load pickup availability
Fitments:
It will work on all models of the 12-19 TRX500 FOREMAN AND RUBICON.
Fit for Honda 2012-2019 TRX500 FM/FE/FPE/FPM Fourtrax Foreman 500 4x4
Fit for Honda 2015-2019 TRX500 FA/FM Foreman Rubicon 500 4x4
Fit for Honda 2015-2021 SXS500M2 Pioneer 500 (Liquid cooled UTV)
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 475cc
Bore Size: STD
Replaces Part Number:
Cylinder: 12100-HR0-F00
Piston: 13101-HR0-F00
Cylinder Base Gasket: 12191-HR0-F01
Cylinder Head Gasket: 12251-HR0-F01
Cylinder Head Cover Gasket: 12315-HR0-F01
Ring Set: 13010-HP0-A01
Pin, piston: 13111-HP5-600
Circlips, piston: 13112-MAT-000
Features:
Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size.
All of the components within this kit are bolt-on ready for a hassle free installation.

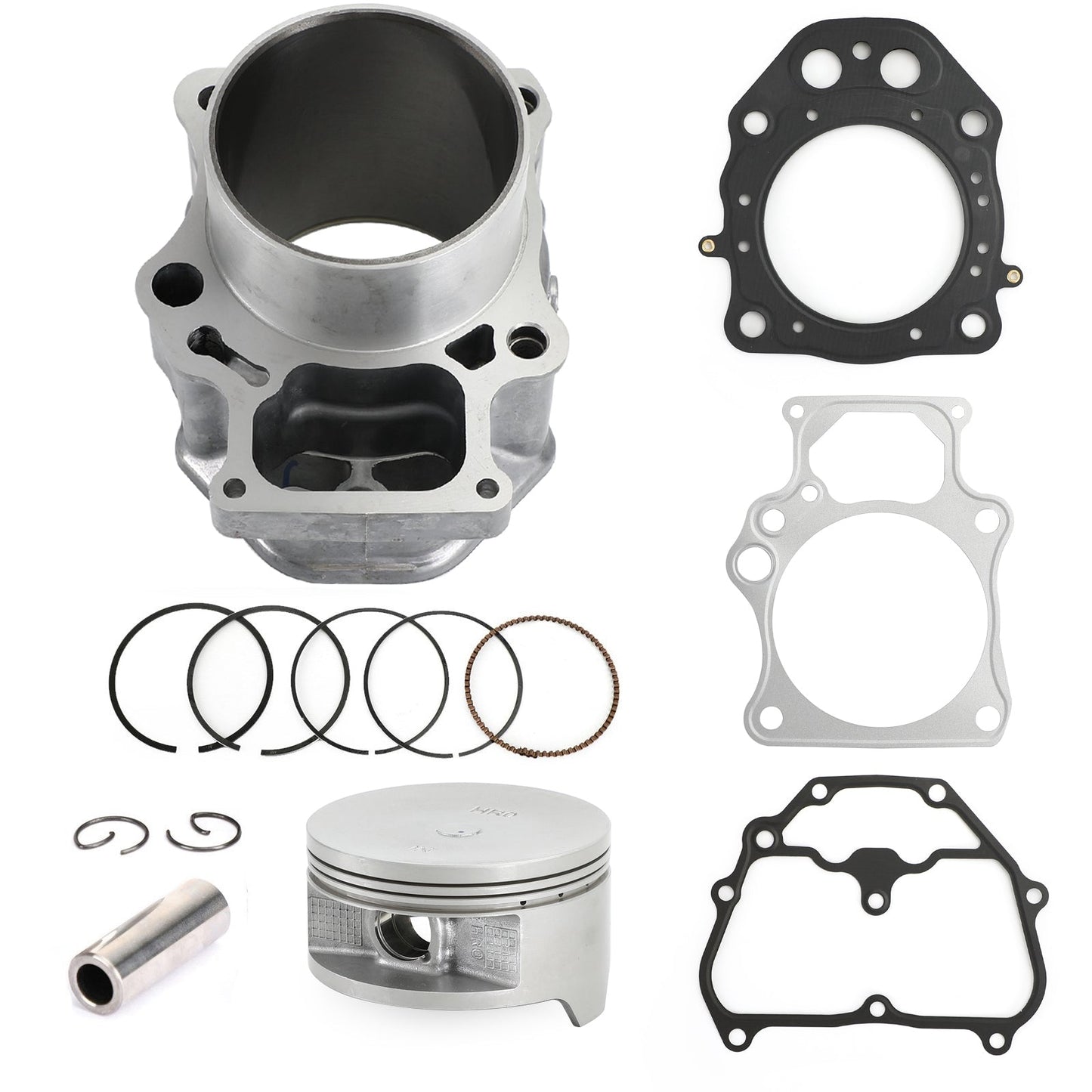

Package Includes:
1x Cylinder
1x Piston(STD)
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Cylinder Head Cover Gasket (Valve Cover Gasket)
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-5 business days
