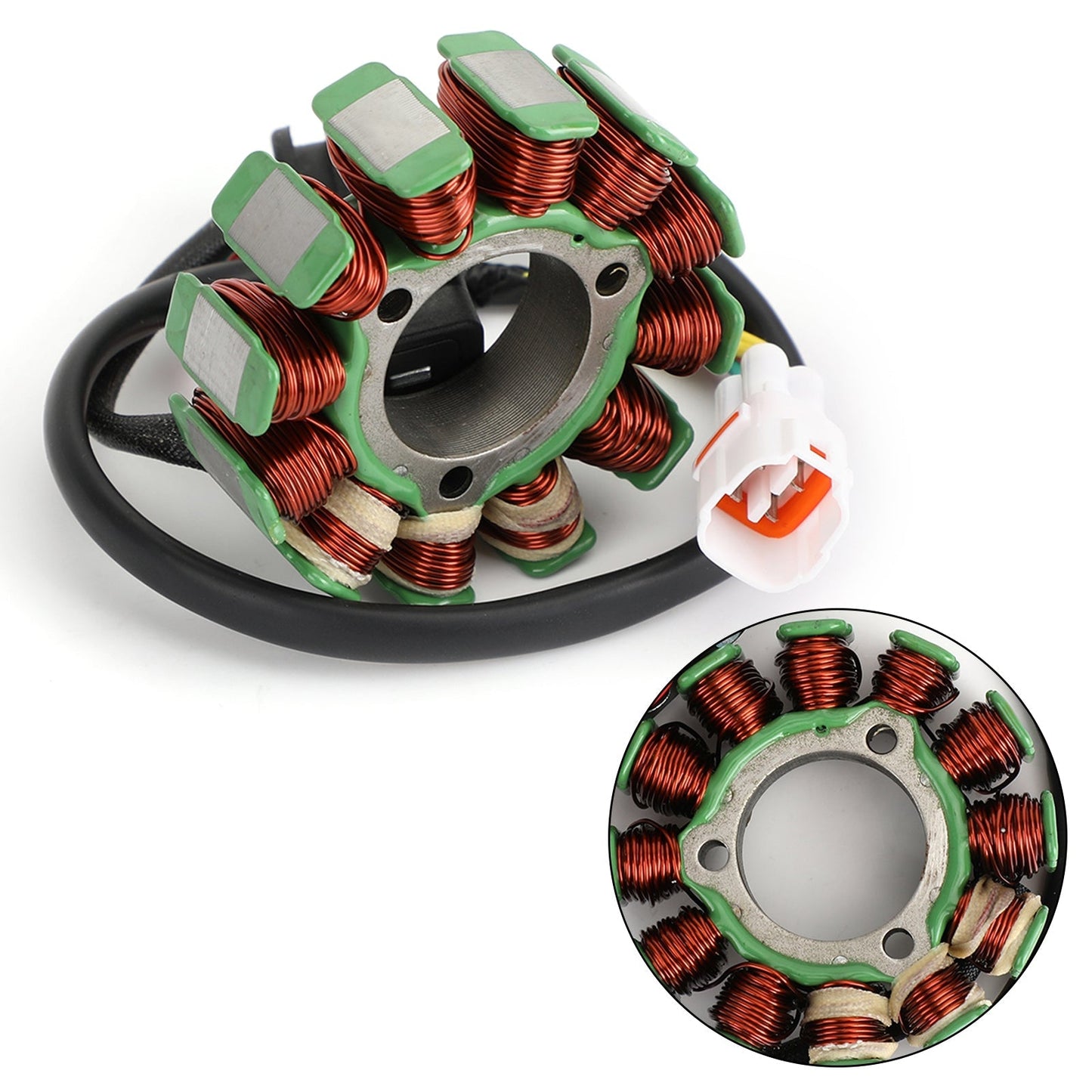

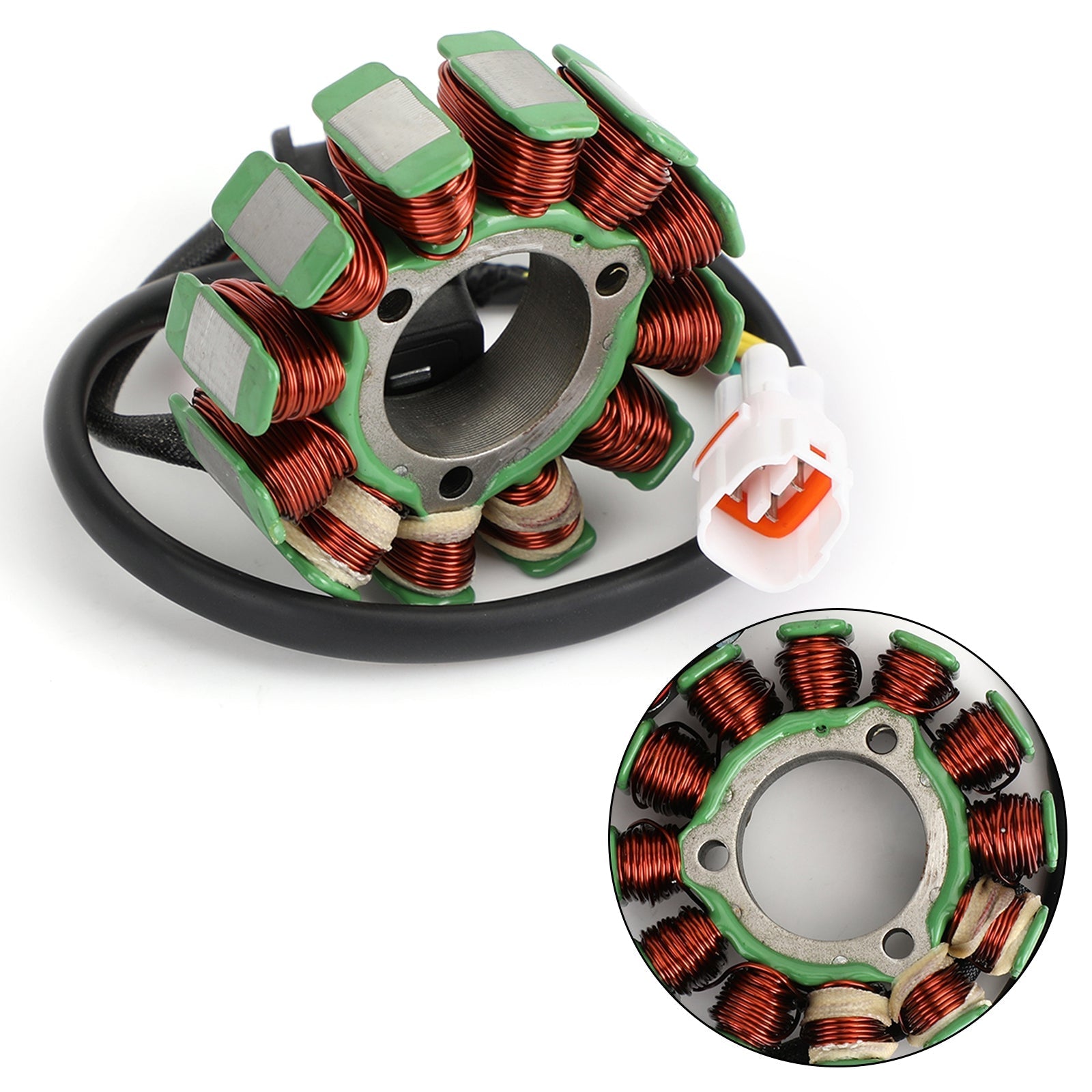

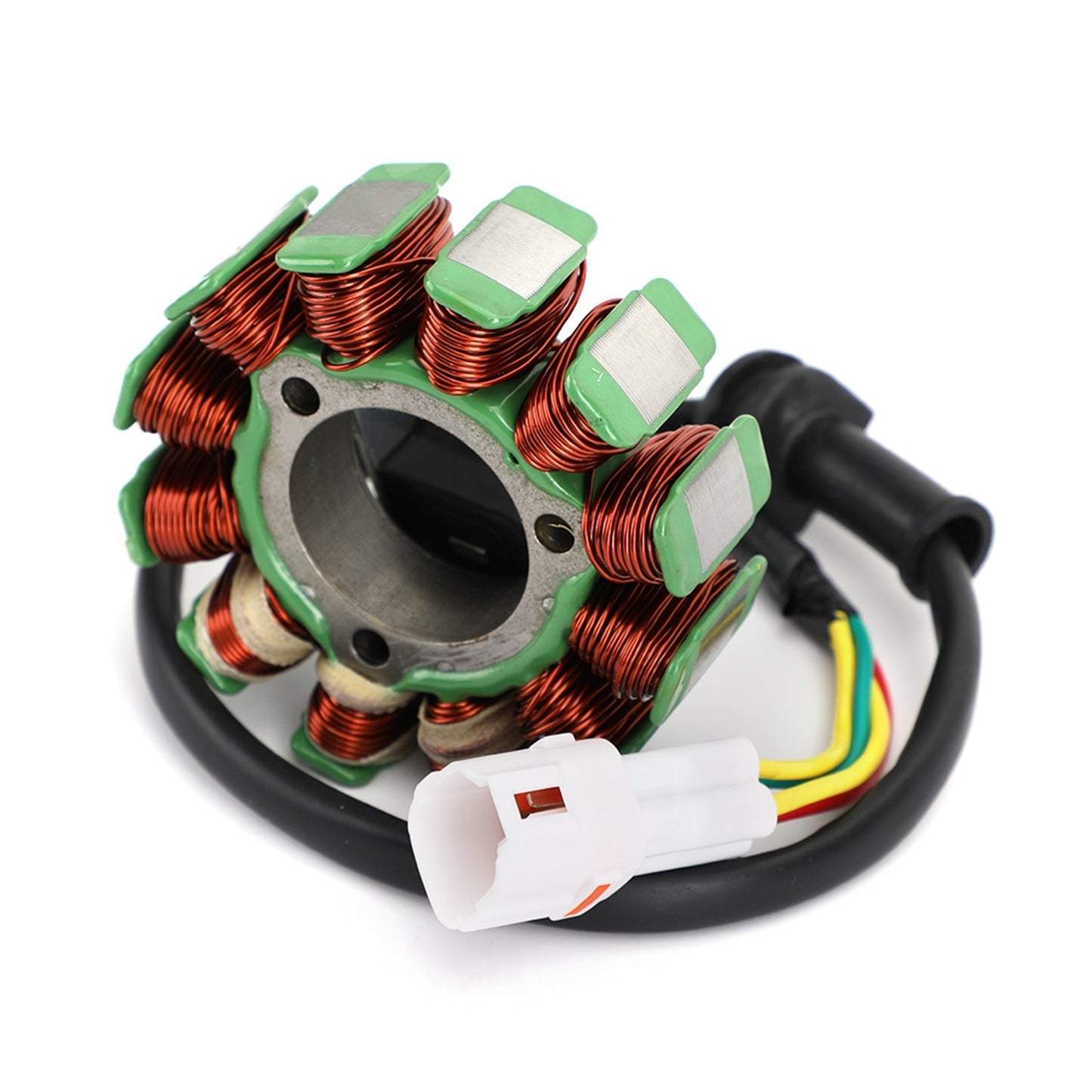

2014-2017 Suzuki RMZ250 Magneto Generator Engine Stator Coil

Replacement Part Number:
32101-28HA0
Please confirm the?Replacement Part Number before ordering.

Fitment:
Fits Suzuki RMZ250 2014-2017
Fits Suzuki RMZ450 2013-2018

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

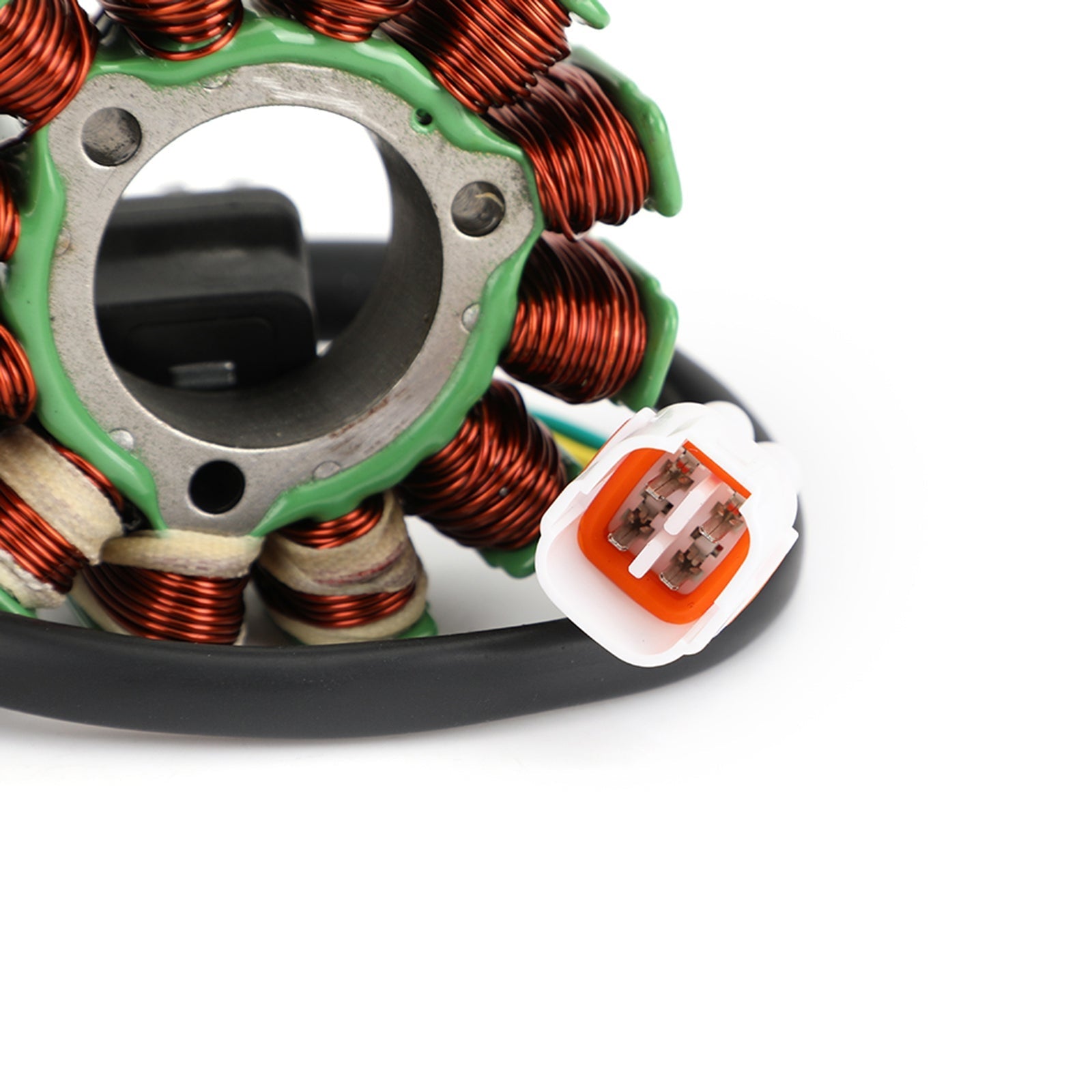

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 x Generator Stator Coil
Type: Generator Stator Coil

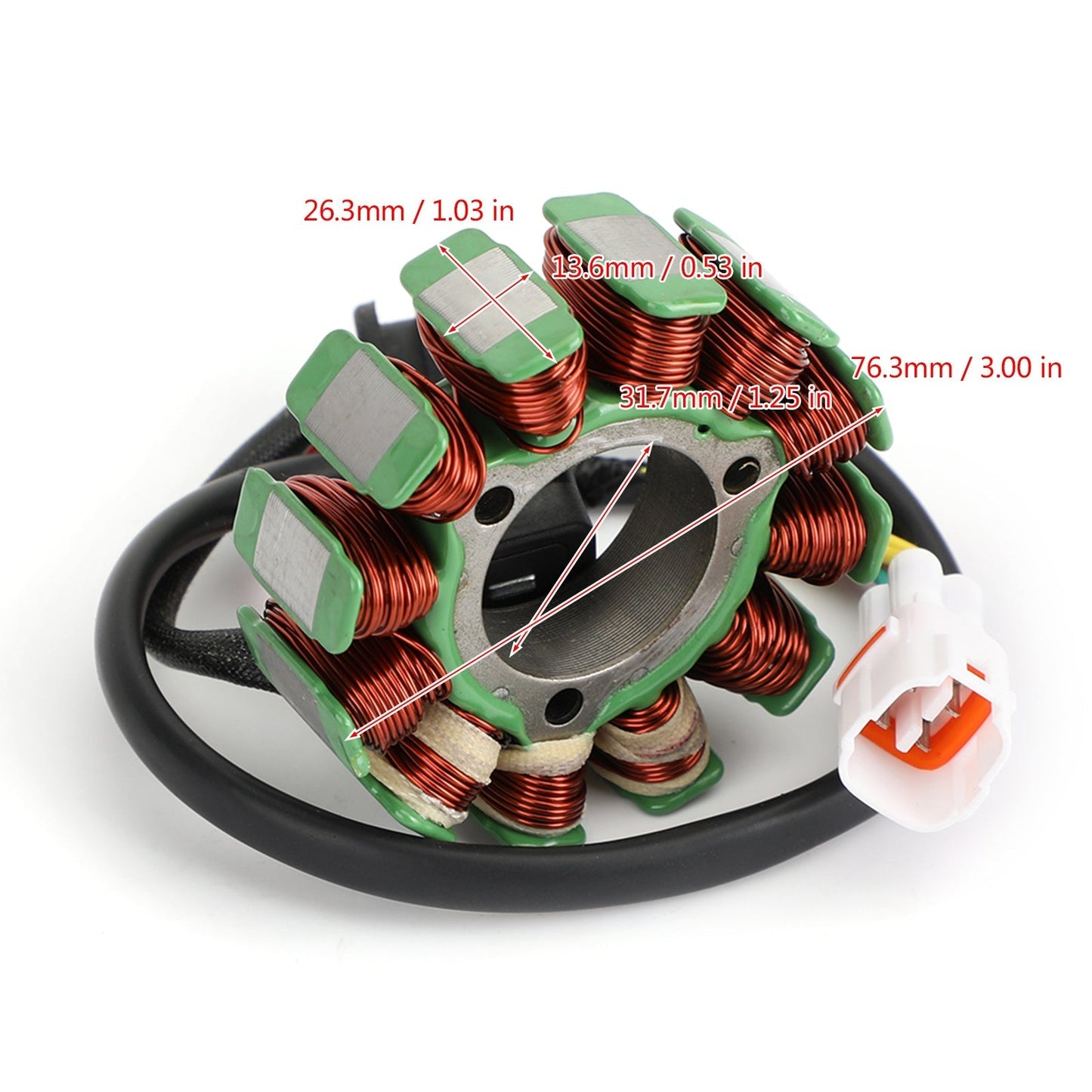

Dimensions :
Interior diameter : 31.7 mm / 1.25 inches
Exterior diameter : 76.3 mm / 3.00 inches
Pole's Thickness : 26.3 mm / 1.03 inches
Pole's Width : 13.6 mm / 0.53 inches

Other specifications:
Number of wires: 4
Number of pins: 4
Number of plugs: 1
Number of fixation holes: 3
Number of poles: 12

Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
