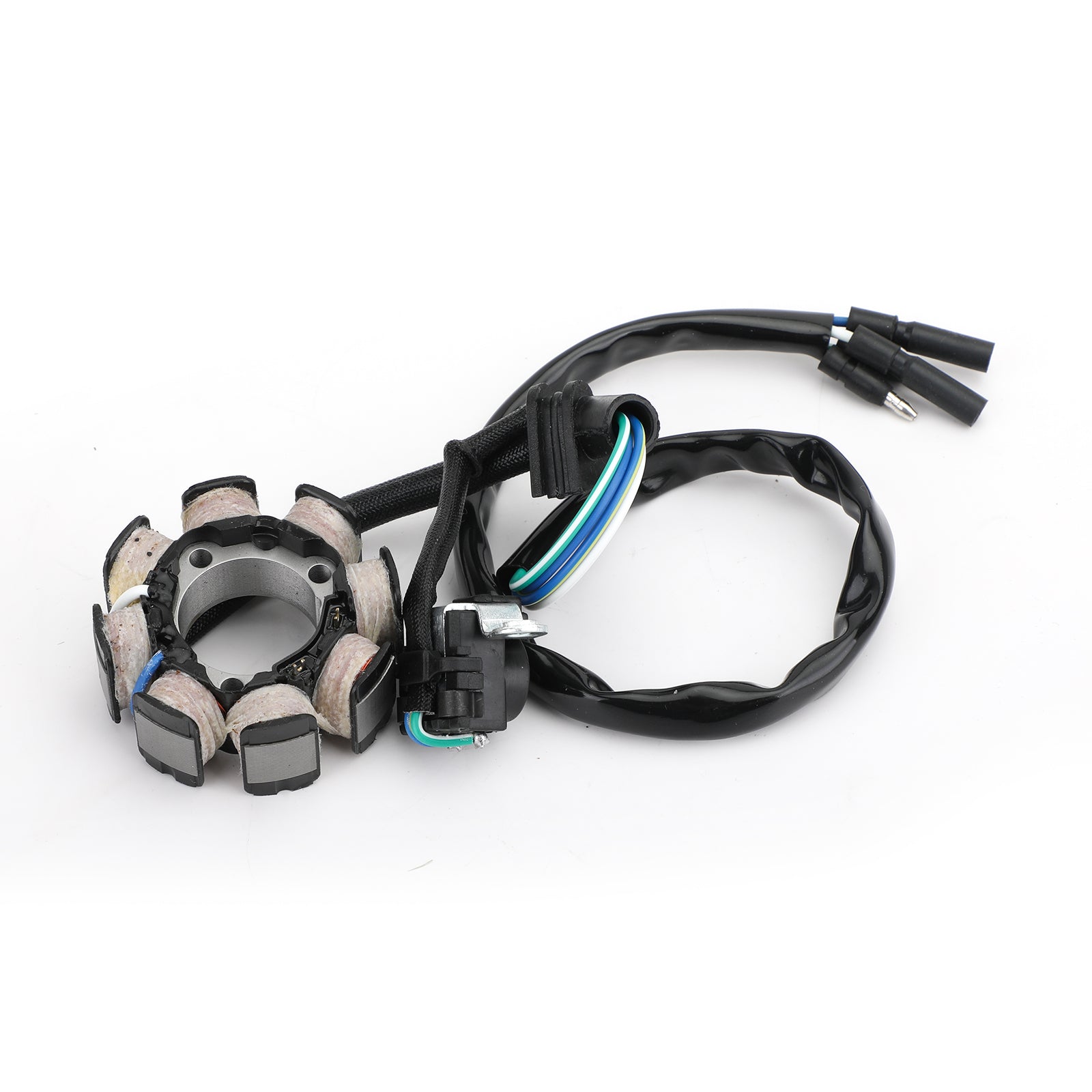

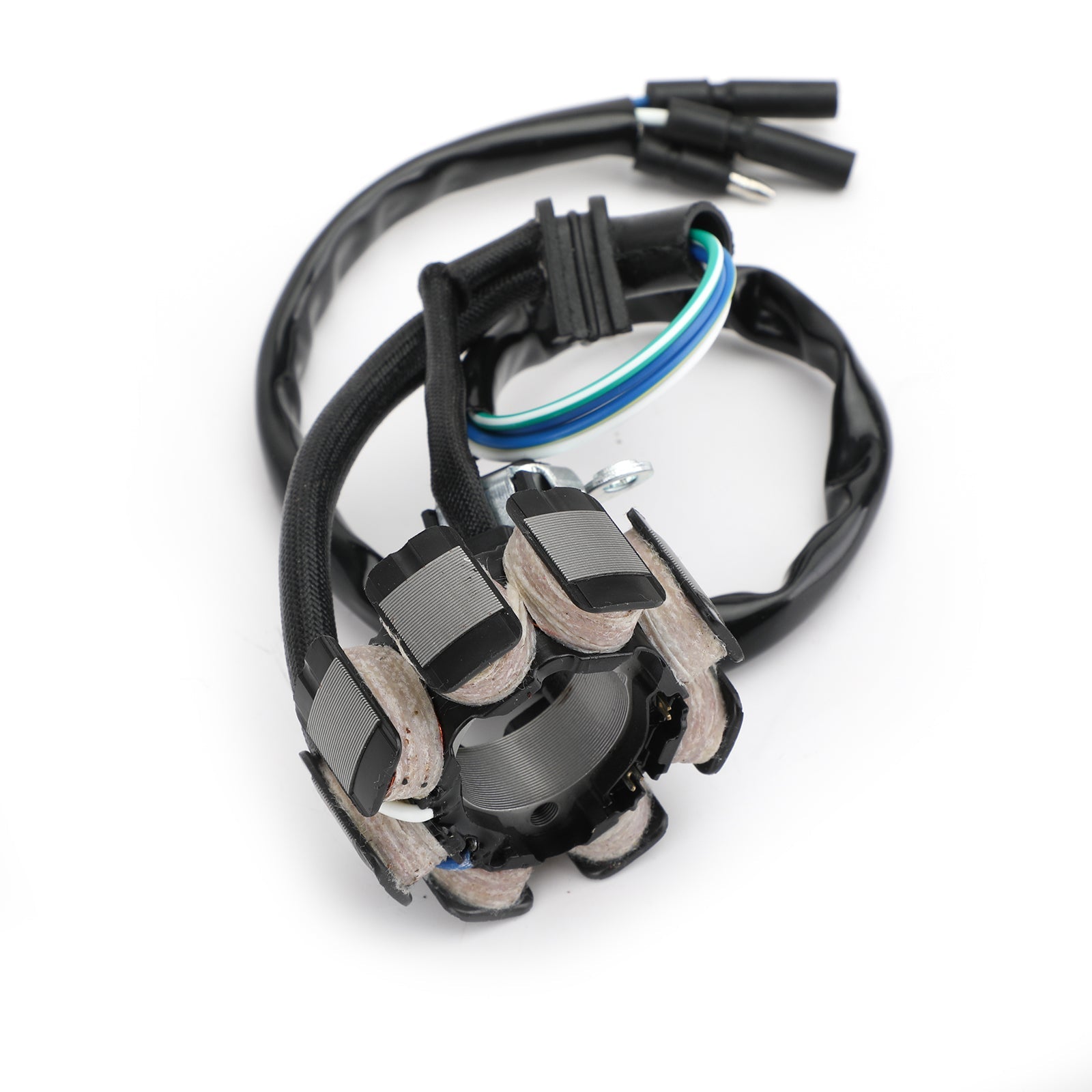

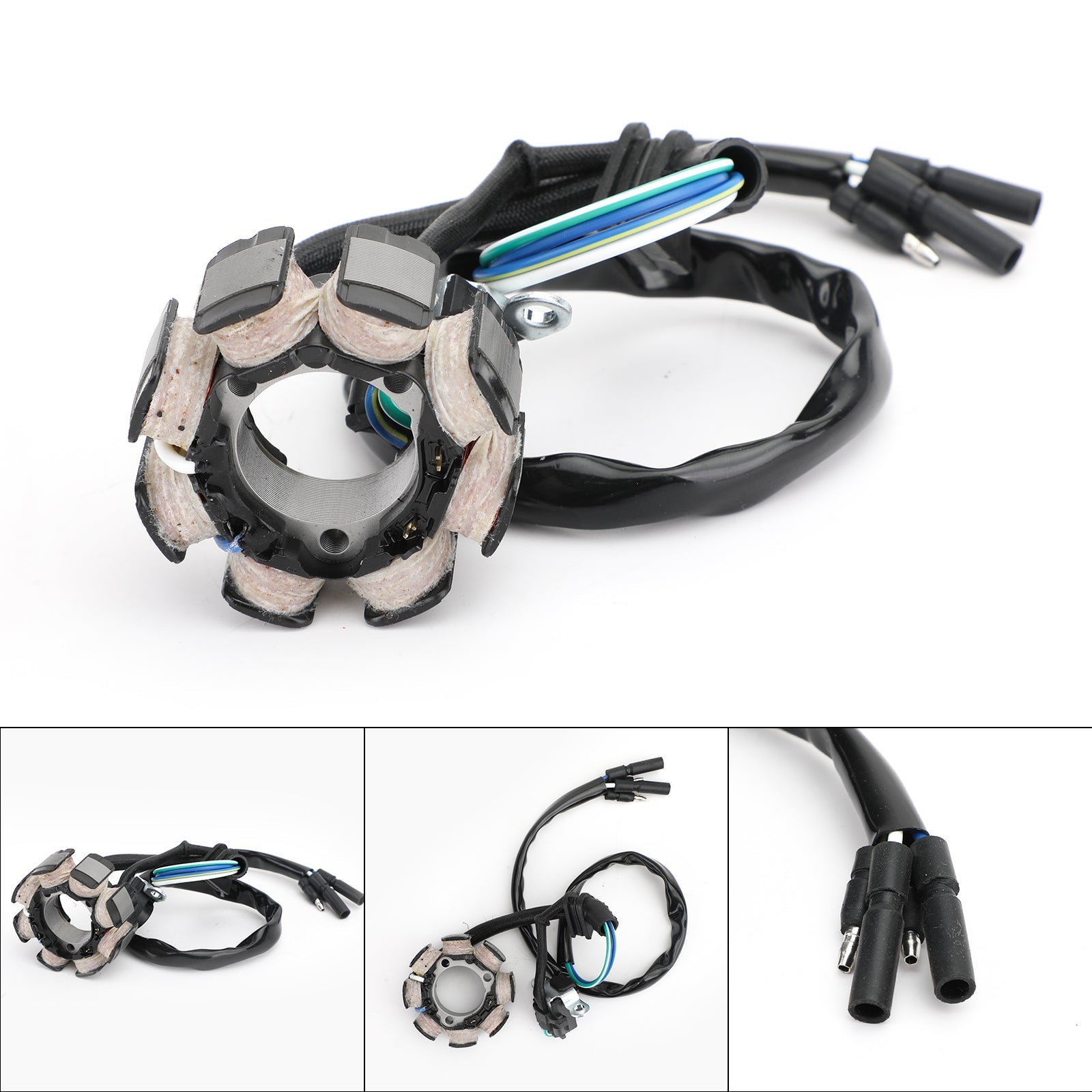

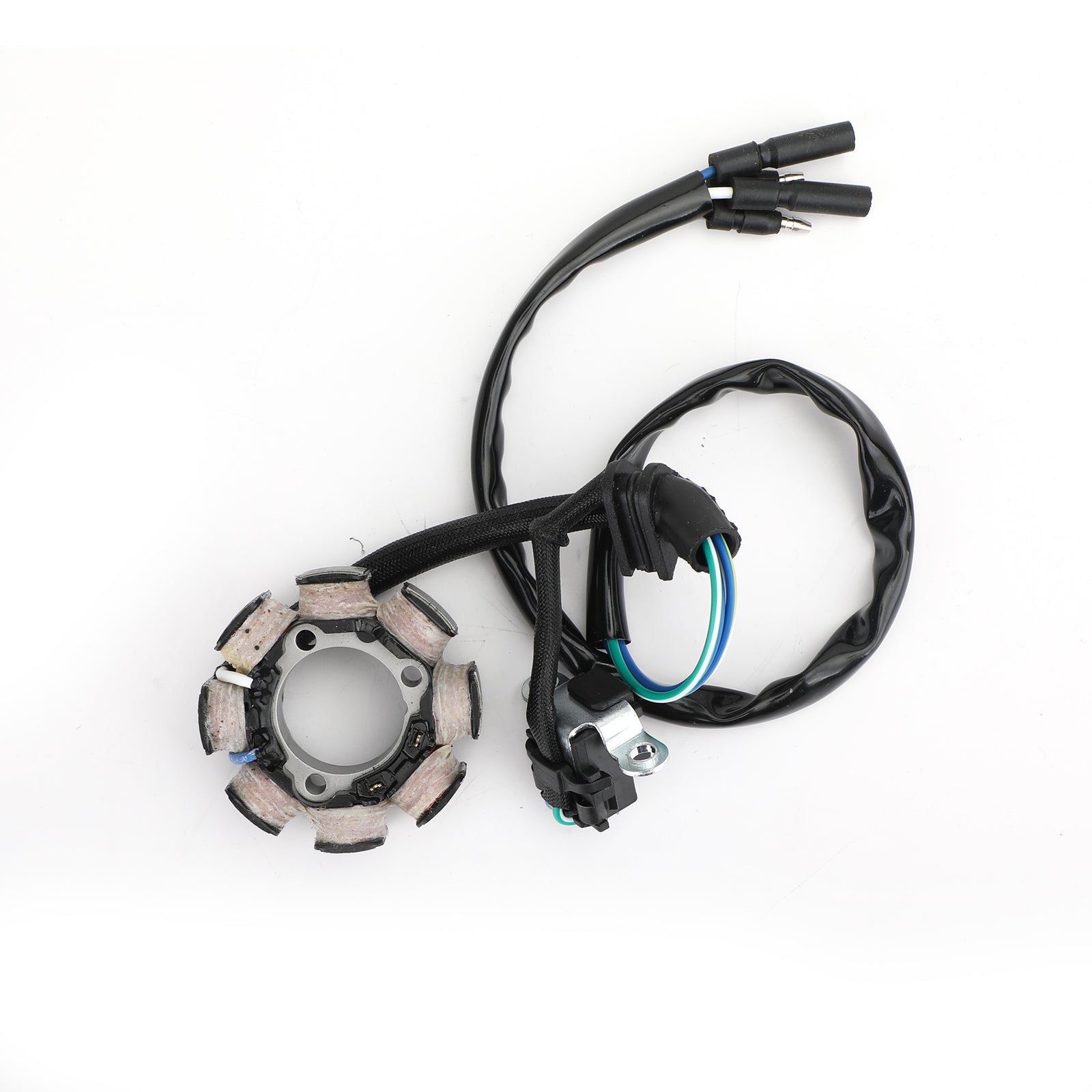

Alternator Stator Coil For Honda CRF450 CRF 450 CRF450R 2004 31120-MEN-003

Replacement Part Number:
31120-MEN-003
Please confirm the?Replacement Part Number before ordering.

Fitment:
For Honda CRF450 CRF450R 2004

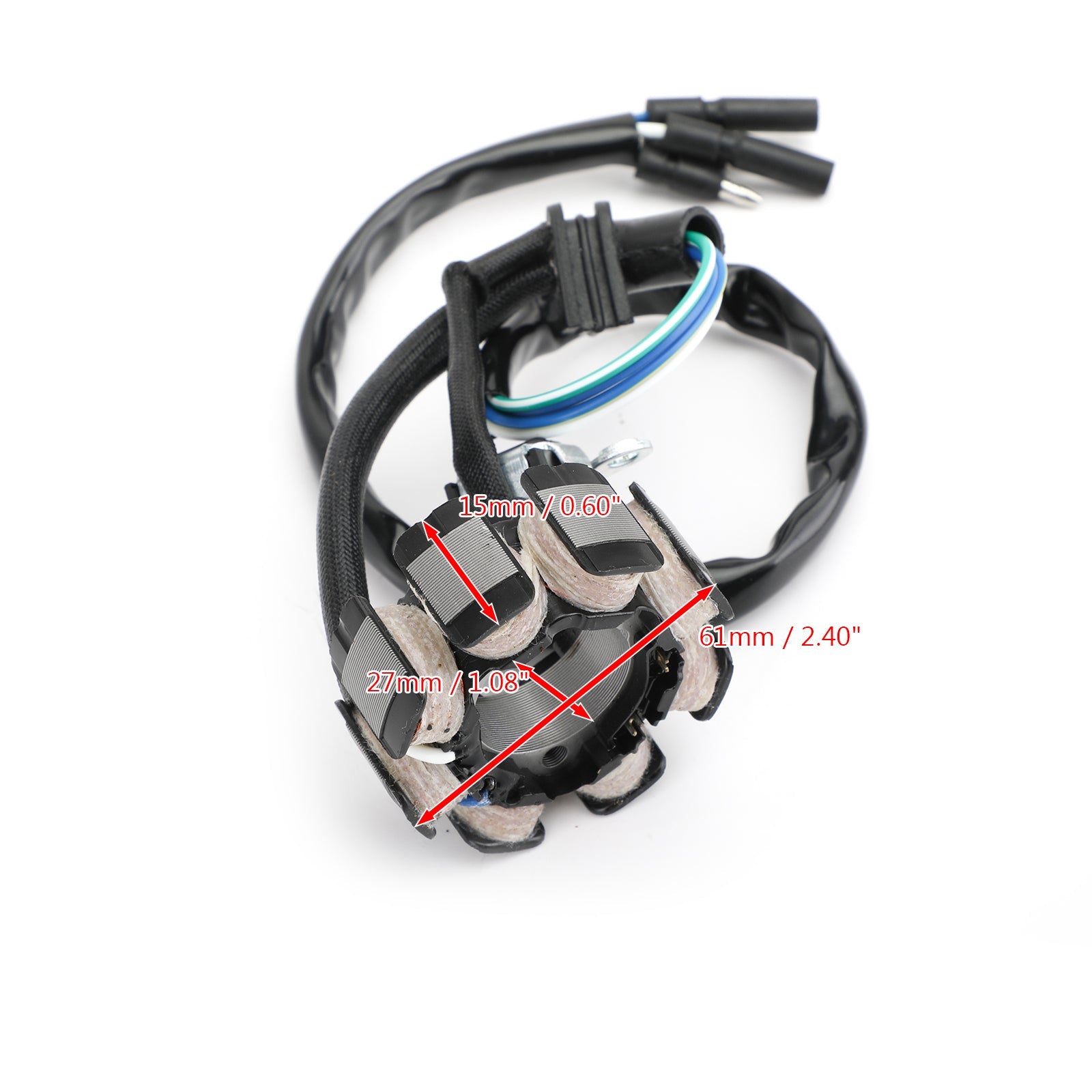

Dimensions:
Interior diameter : 27mm / 1.08"
Exterior diameter : 61mm / 2.40"
Thickness : 15mm / 0.60"

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Other specifications:
Number of wires: 4
Number of pins: 4
Number of plugs: 4
Number of fixation holes: 3
Fixation holes length: 35mm / 1.37"

Package Incleded:
1x Generator Stator Coil

Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
