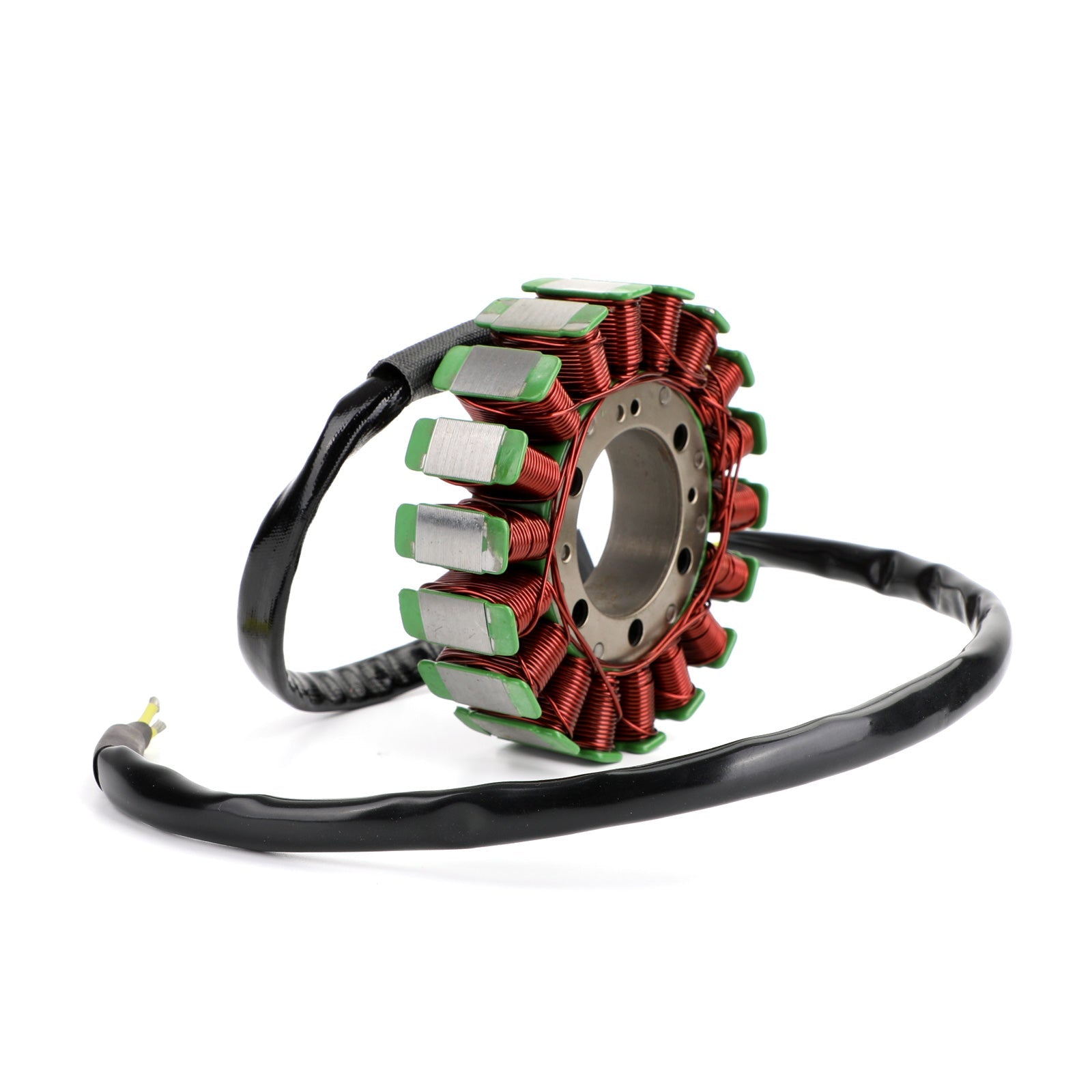

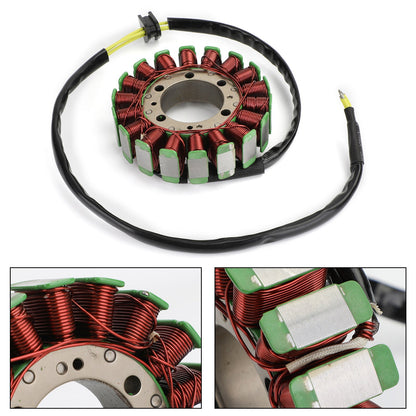

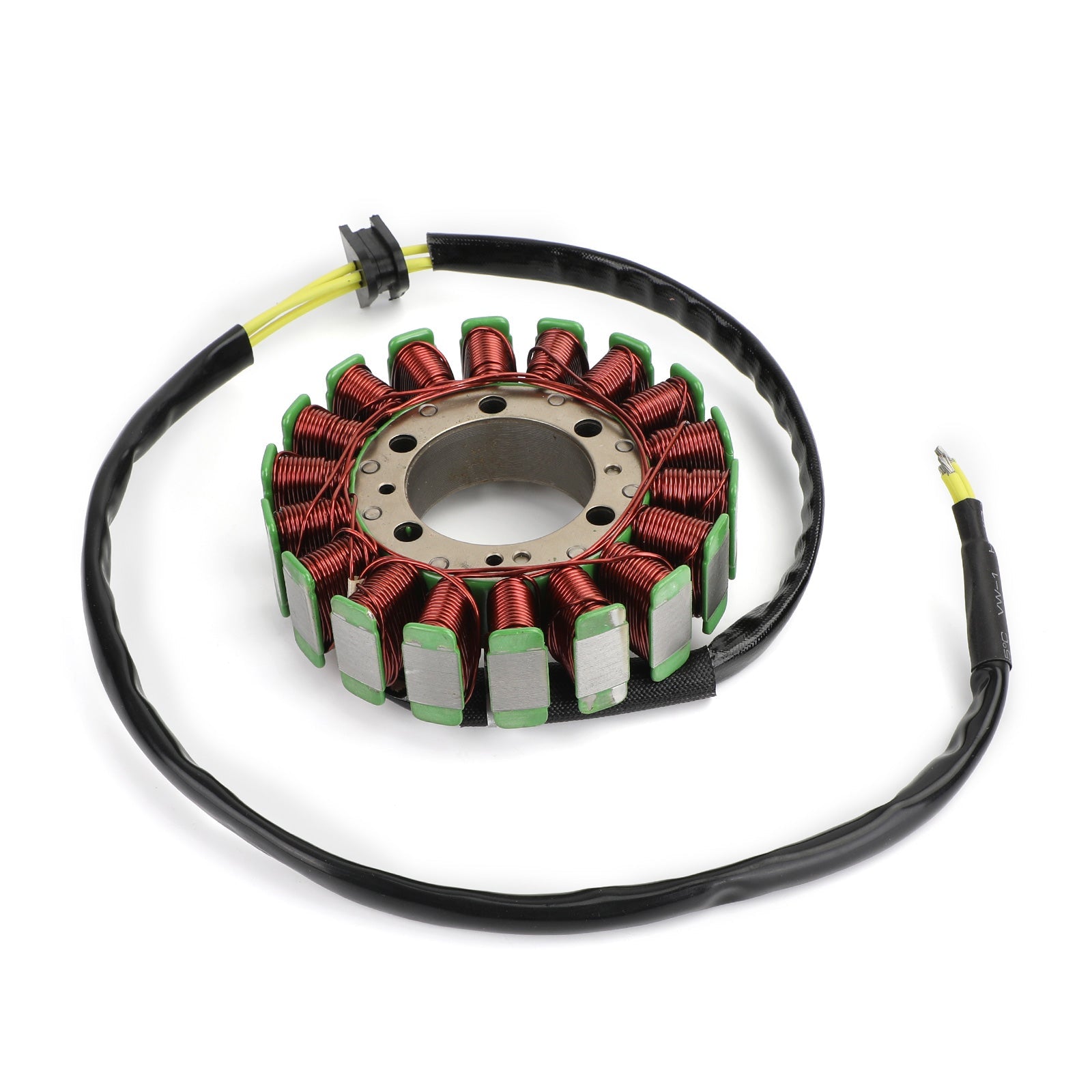

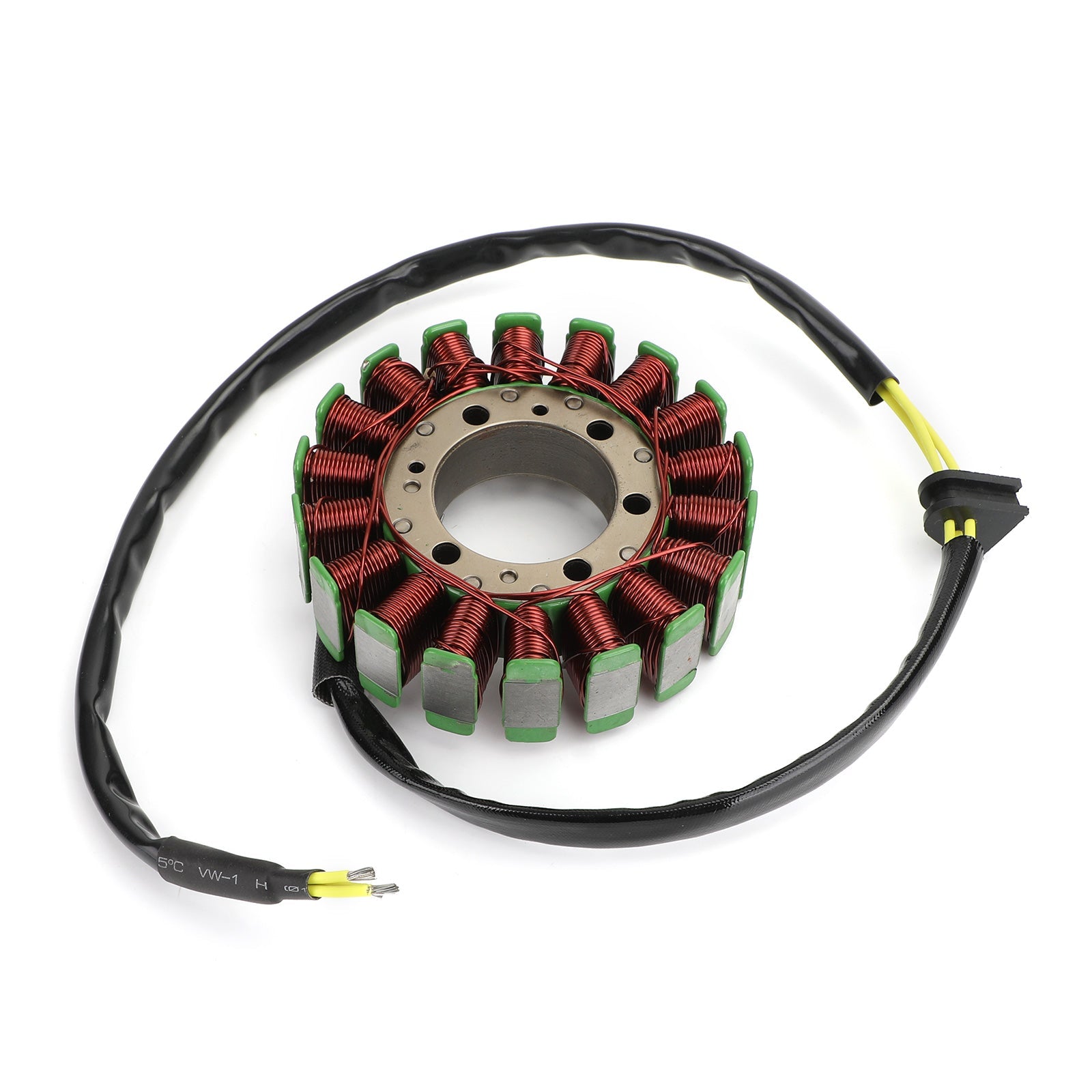

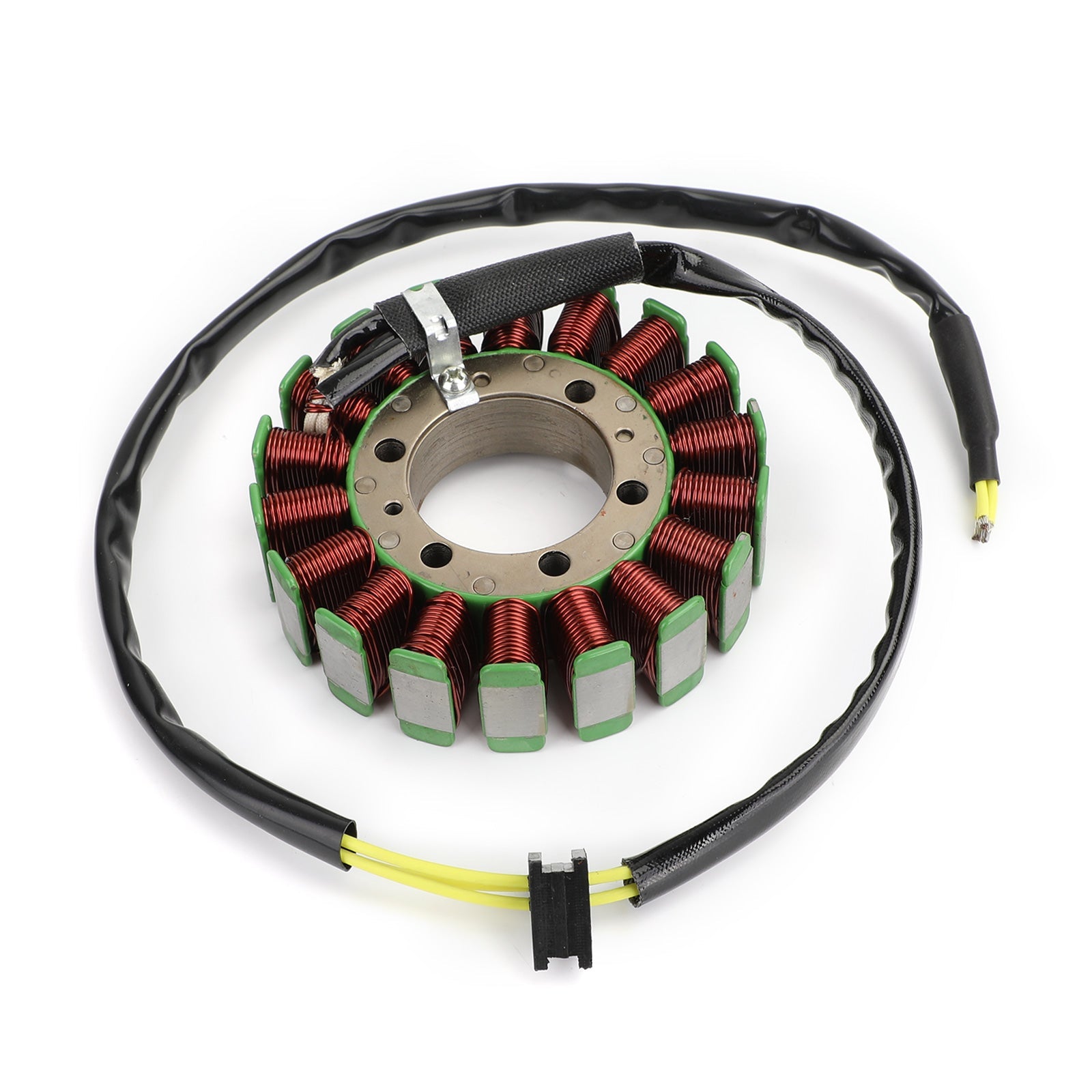

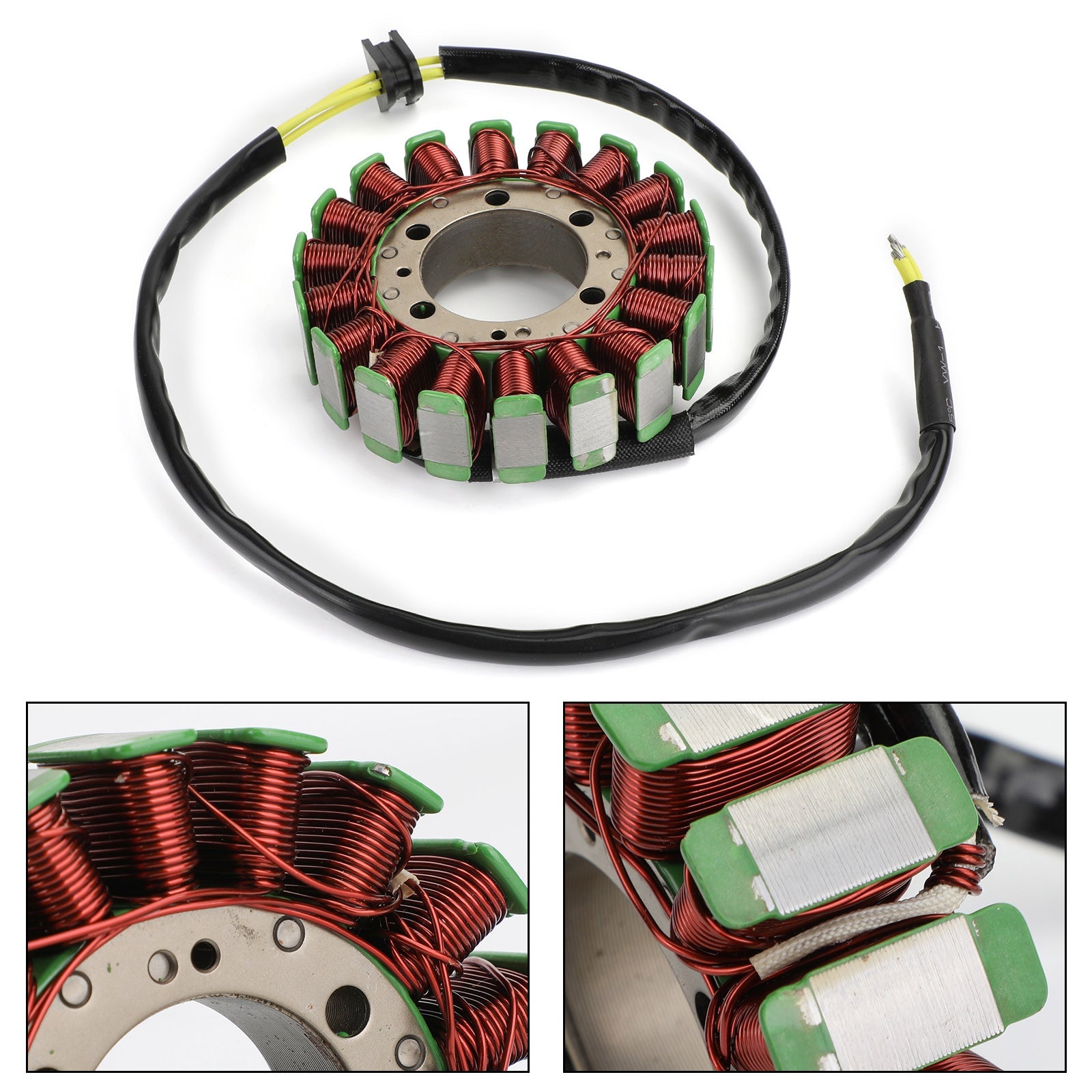

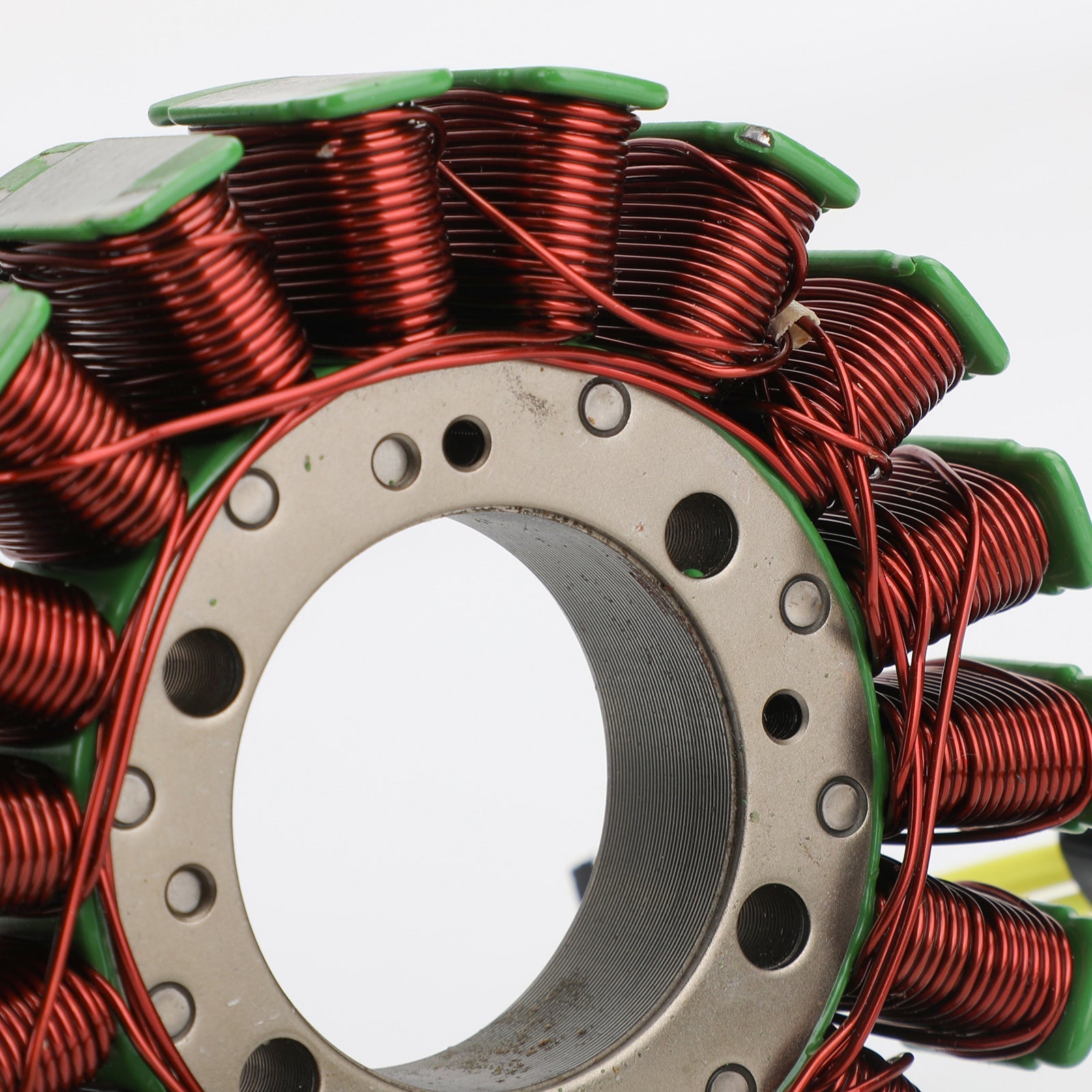

Generator Stator Coil 18 Poles For Jet Skis Benelli Belassi B3S 1602cc

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 32101-06G00, 32101-06G10, 32101-06G11

Dimensions :
Interior diameter : 41.7 mm/1.64 inches
Exterior diameter : 107 mm/4.21 inches
Pole's Thickness : 29.7 mm/1.17 inches
Pole's Width : 13 mm/0.51 inches

Other specifications :
Number of wires: 3
Number of fixation holes: 5(+1)
Number of poles: 18

FITMENT:
For Benelli Jet Skis
For Benelli Belassi B3S 1602cc

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

PACKAGE INCLUDED:
1 x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
