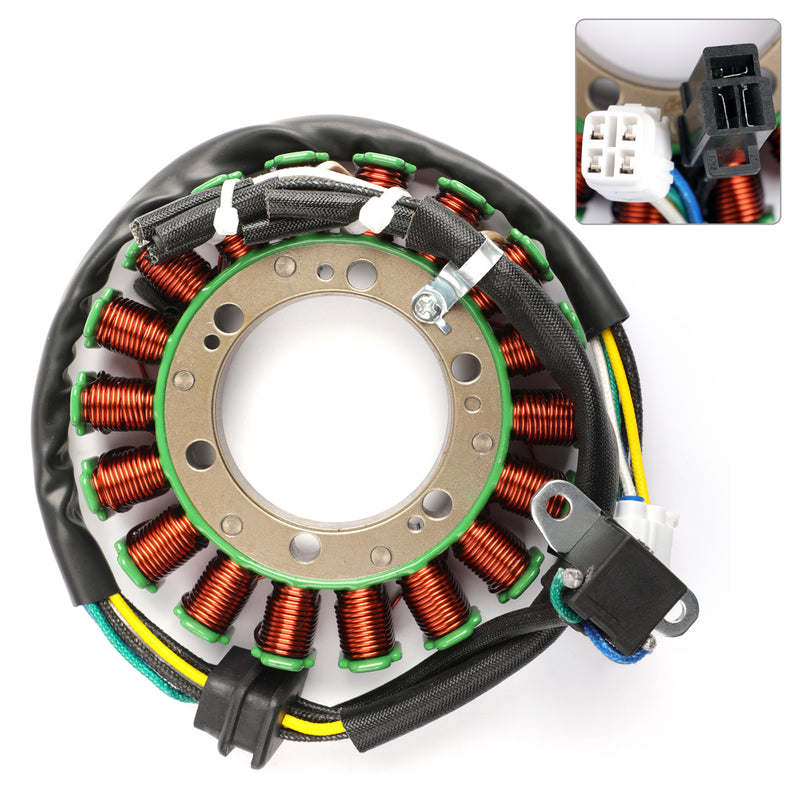

Magneto Stator Coil For ARCTIC CAT ATV 400 375 650 TBX TRV 3430-053 0802-037 Champoo

Fitment:
Fits Suzuki LTA400 Eiger Auto 2WD 2002-2007
Fits Suzuki LTA400 Eiger Auto 4WD 2002-2007
Fits Suzuki LTF400 Eiger 2WD 2002-2007
Fits Suzuki LTF400 Eiger 4WD 2002-2007
Fits Arctic Cat ATV 400 4X4 AUTOMATIC TRANSMISSION 2003-2004
Fits Arctic Cat ATV 400 4X4 MANUAL TRANSMISSION 2003-2004
Fits Arctic Cat ATV 400 FIS 2X4 AUTOMATIC TRANSMISSION 2003-2004
Fits Arctic Cat ATV 400 FIS 4X4 AUTOMATIC TRANSMISSION 2003-2008
Fits Arctic Cat ATV 400 VP 4X4 AUTOMATIC TRANSMISSION 2005-2006
Fits Arctic Cat ATV 400 VP 4X4 MANUAL TRANSMISSION 2005-2006
Fits Arctic Cat ATV 400/500 FIS 2X4 MANUAL TRANSMISSION 2003-2004
Fits Arctic Cat ATV 400/500 FIS 4X4 MANUAL TRANSMISSION 2005-2008
Fits Arctic Cat ATV 375 375 AUTO 4X4 2002
Fits Arctic Cat ATV 375 375 AUTO 2X4 2002
Fits Arctic Cat ATV 650 H1 2010-2012
Fits Arctic Cat ATV 650 H1 FIS 2005-2008
Fits Arctic Cat MudPro 650 H1 2010-2011
Fits Arctic Cat Prowler 650 H1 XT 2006-2009
Fits Arctic Cat TBX 400 4X4 AUTOMATIC TRANSMISSION 2004-2006
Fits Arctic Cat TBX 650 H1 2007/2009
Fits Arctic Cat TRV 400 AUTO 2006-2008
Fits Arctic Cat TRV 400 AUTO 2006-2008
Fits Arctic Cat TRV 650 H1 2007-2009

OEM Replacement Part Number:
Suzuki 32102-38F01
Suzuki 32101-38F00
Arctic Cat 3430-053
Arctic Cat 0802-037

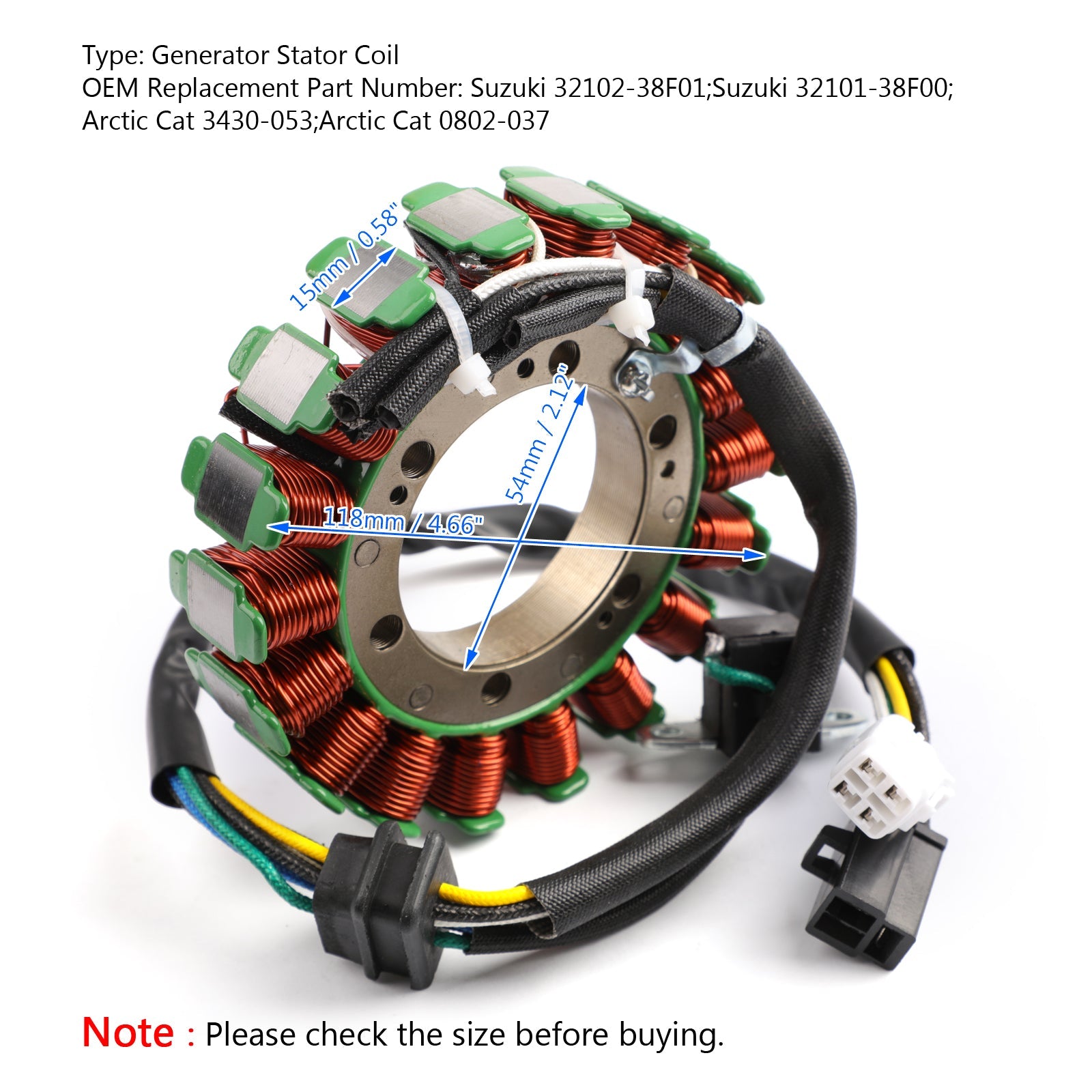

Dimensions:
Interior diameter : 54mm / 2.12"
Exterior diameter : 118mm / 4.66"
Thickness : 15mm / 0.58"

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Other specifications:
Number of wires : 7
Number of pins : 7

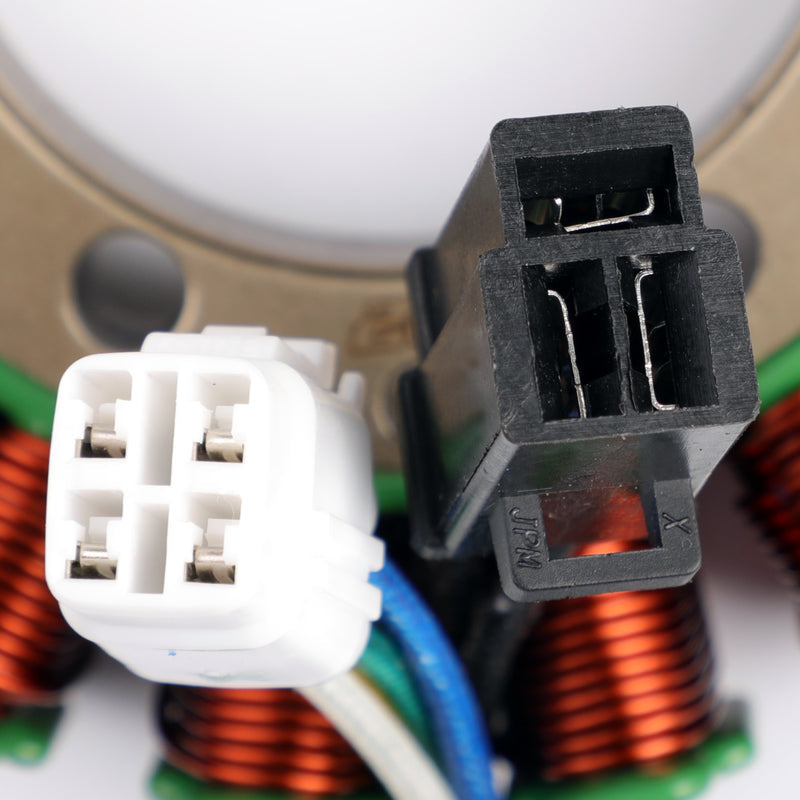

Number of plugs : 2
Number of fixation holes: 6(+3)

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

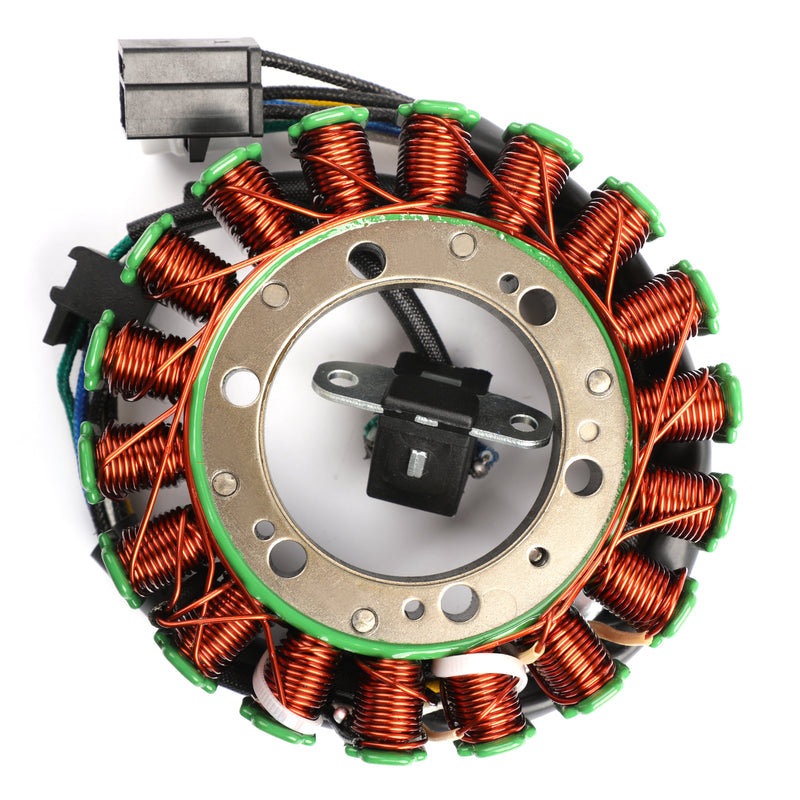

Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Package Incleded:
1x Generator Stator Coil

Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
