Suzuki 05-09 VS1400 Boulevard S83 &87-04 GLP Intruder 1400 & 85-91 VS750 Intruder 750 Fuel Pump Assembly Champoo

Fitments:
Fit for Suzuki VS700 GL/GLE Intruder 700 1986-1987
Fit for Suzuki VS750 Intruder 750 1985-1991 Model f/g
Fit for Suzuki VS1400 GLP Intruder 1400 1987-2004
Fit for Suzuki VS1400 Boulevard S83 2005-2009

Reference Part Numbers:
15100-38A00 ; 15100-38A01

Specifications:

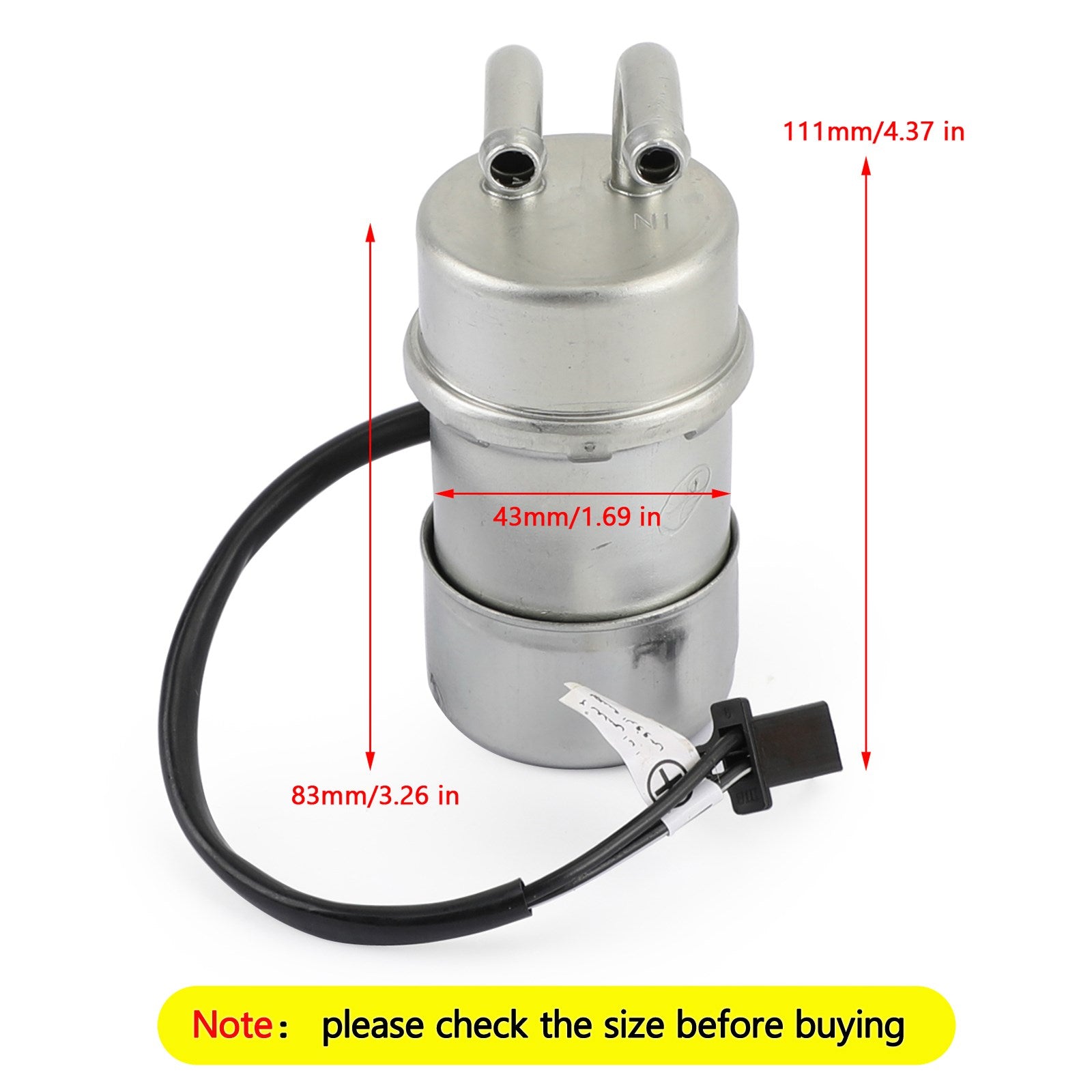

Overall Length: 111mm
Length of Pump Body Metal Case: 83mm
Pump Body Diameter: 43mm
Inlet & Outlet tube diameter: 8mm (5/16")

Other Specifications:

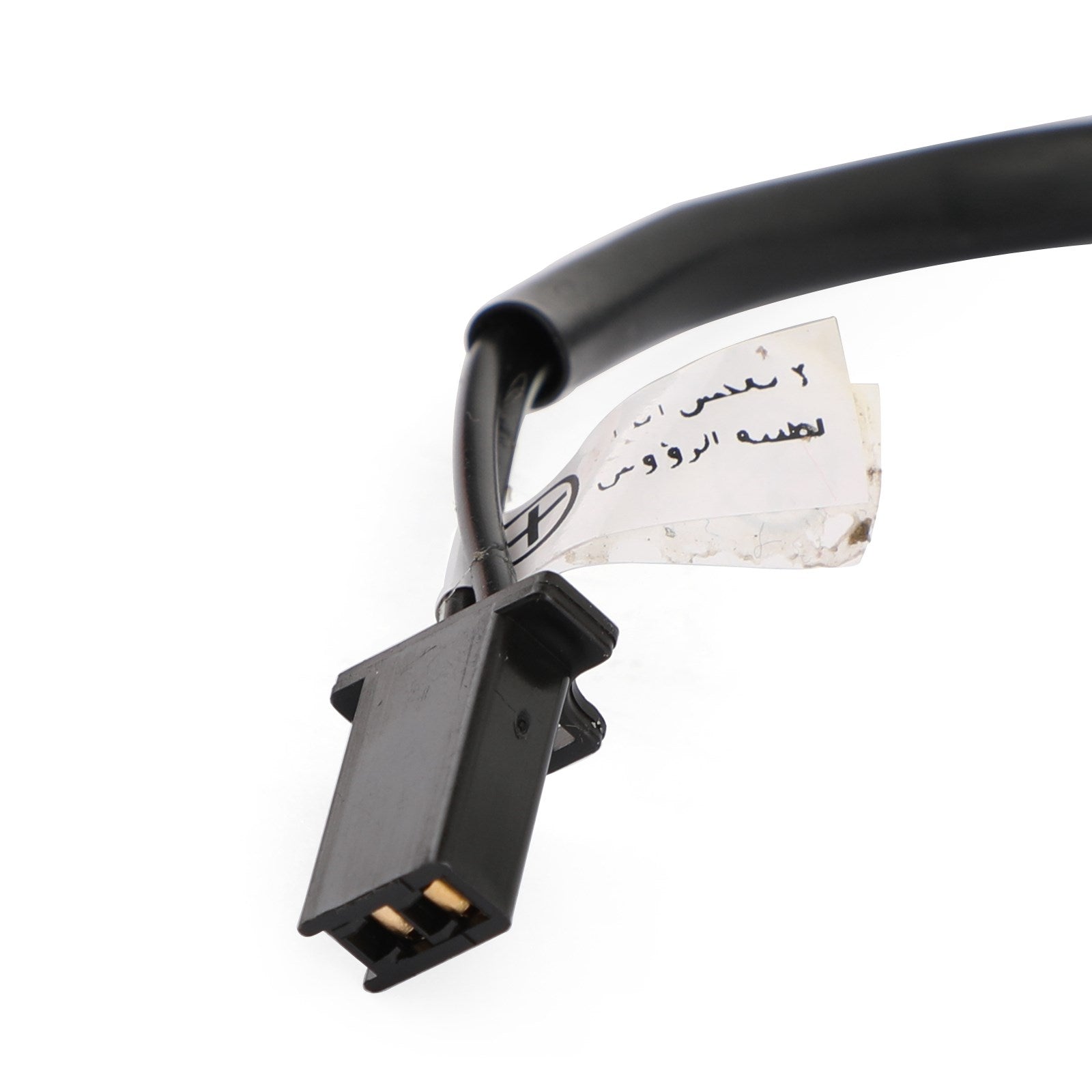

Number of wires: 2
Number of pins: 2
Number of plugs: 1

Package Included:
1 x Fuel Pump Assembly

Note:
Compatibility only for reference,please check out the size & part numbers fits your bike or not.
This is an aftermarket part,not an original part.
