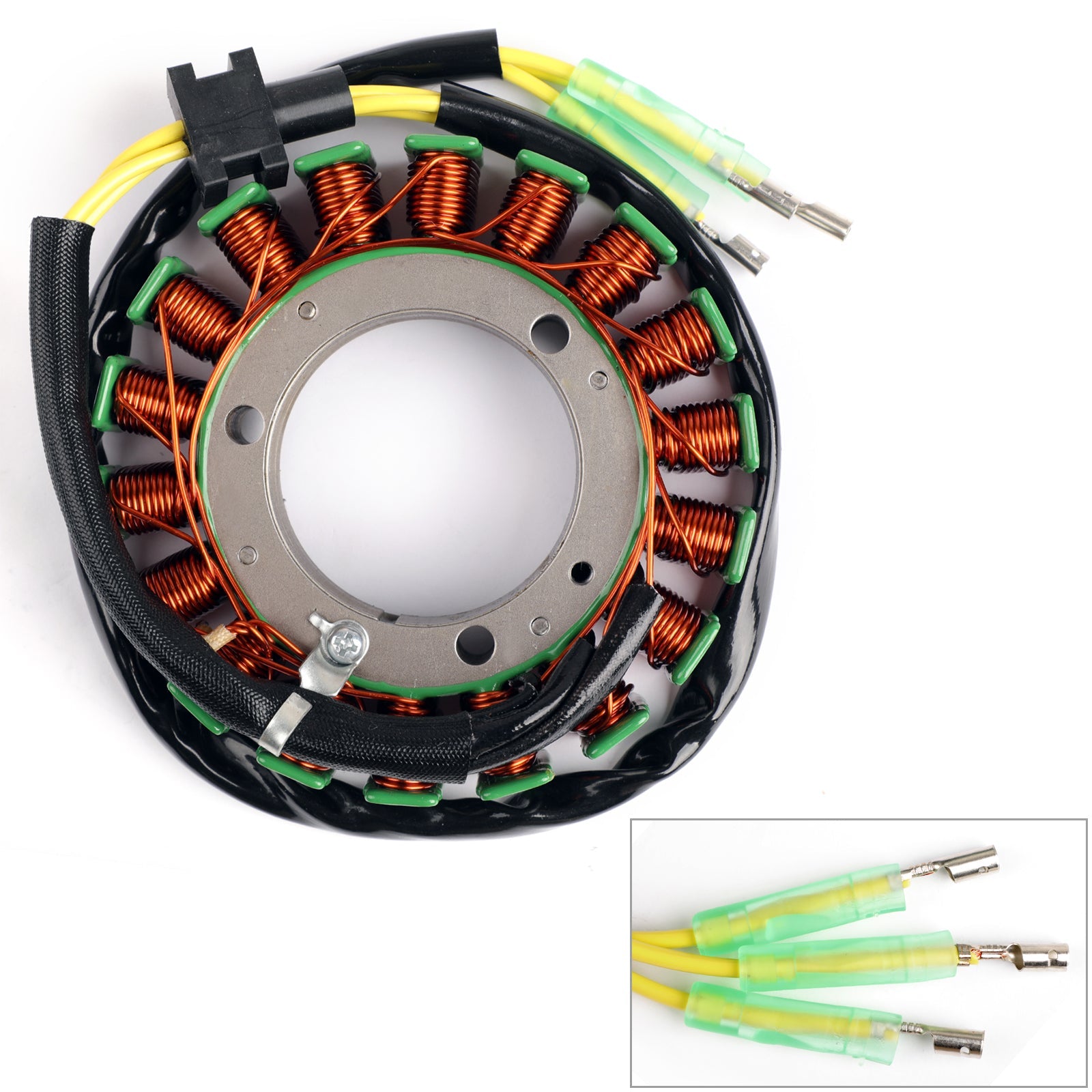

Stator Generator Fit for Kawasaki VN1500 VN15 VN-15 Vulcan 88 SE 1987-1999

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

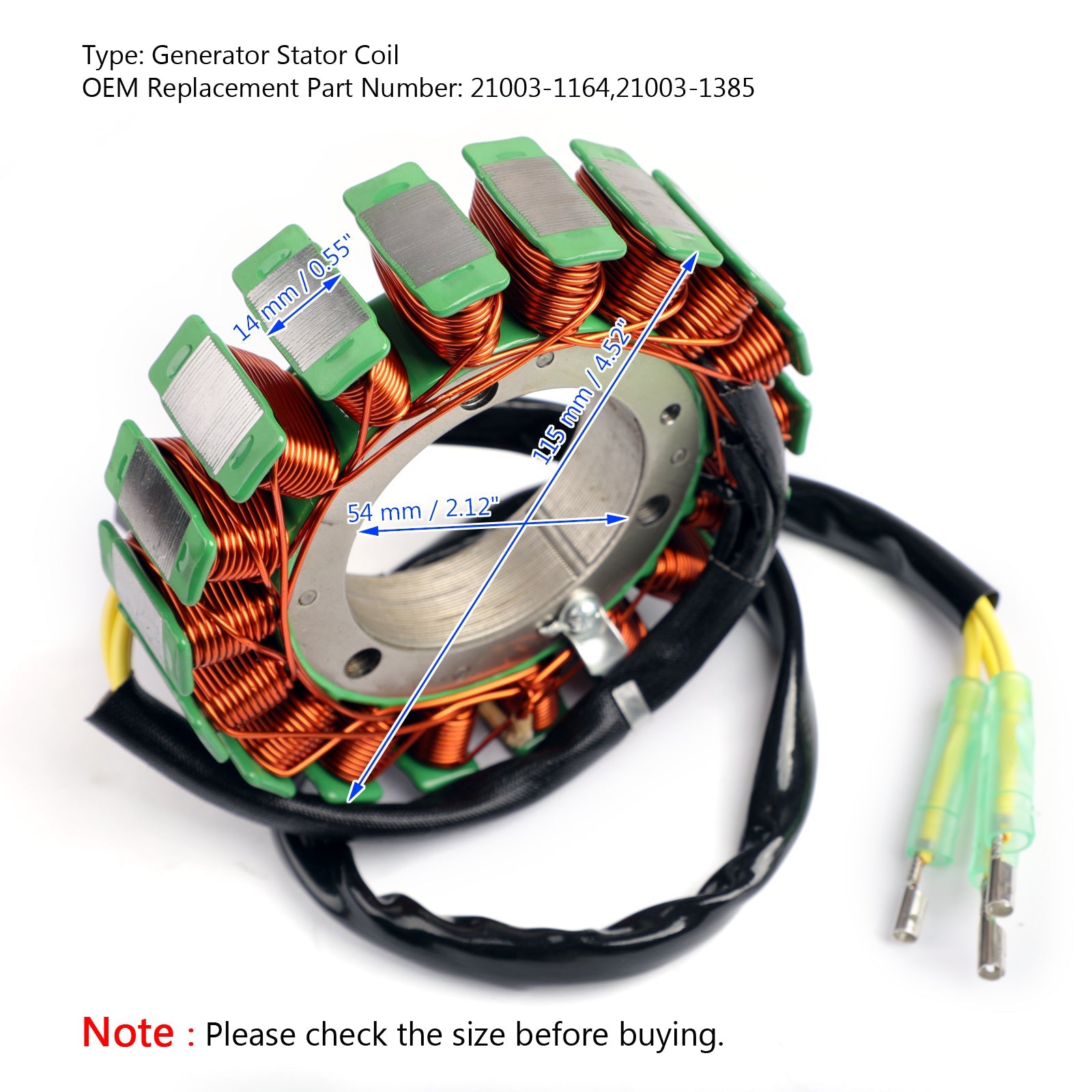

Dimensions :
Interior diameter : 54mm / 2.12in
Exterior diameter : 115mm / 4.52in
Thickness : 14mm / 0.55in

Other Specifications :

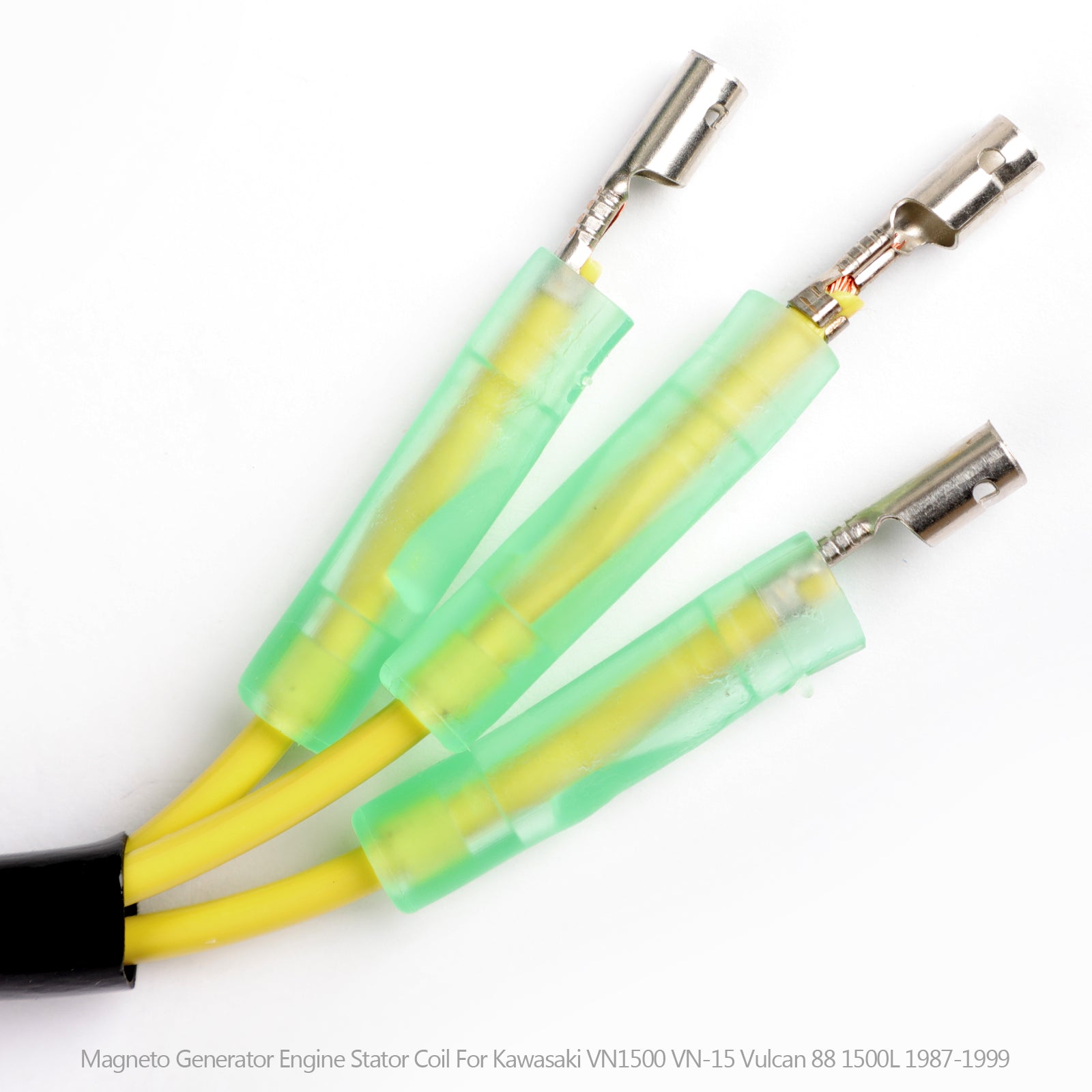

Number of wires : 3
Number of pins : 3
Number of plug : 3
Number of fixation holes: 3

Replacement Part Number:
21003-1164
21003-1385

Fitments:
Fit for Kawasaki VN1500 VN-15 SE 1989-1992
Fit for Kawasaki VN1500 Vulcan 88 SE 1987-1990
Fit for Kawasaki VN1500 VN-15 1988-1999
Fit for Kawasaki VN1500 Vulcan 1500 1996-1999
Fit for Kawasaki VN1500 Vulcan 88 1987-1995
Fit for Kawasaki VN1500 Vulcan 1500L 1996-1997
Fit for Kawasaki VN1500 VN-15 1994-1995
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Package Includes:
1x Generator Stator Coil

Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
