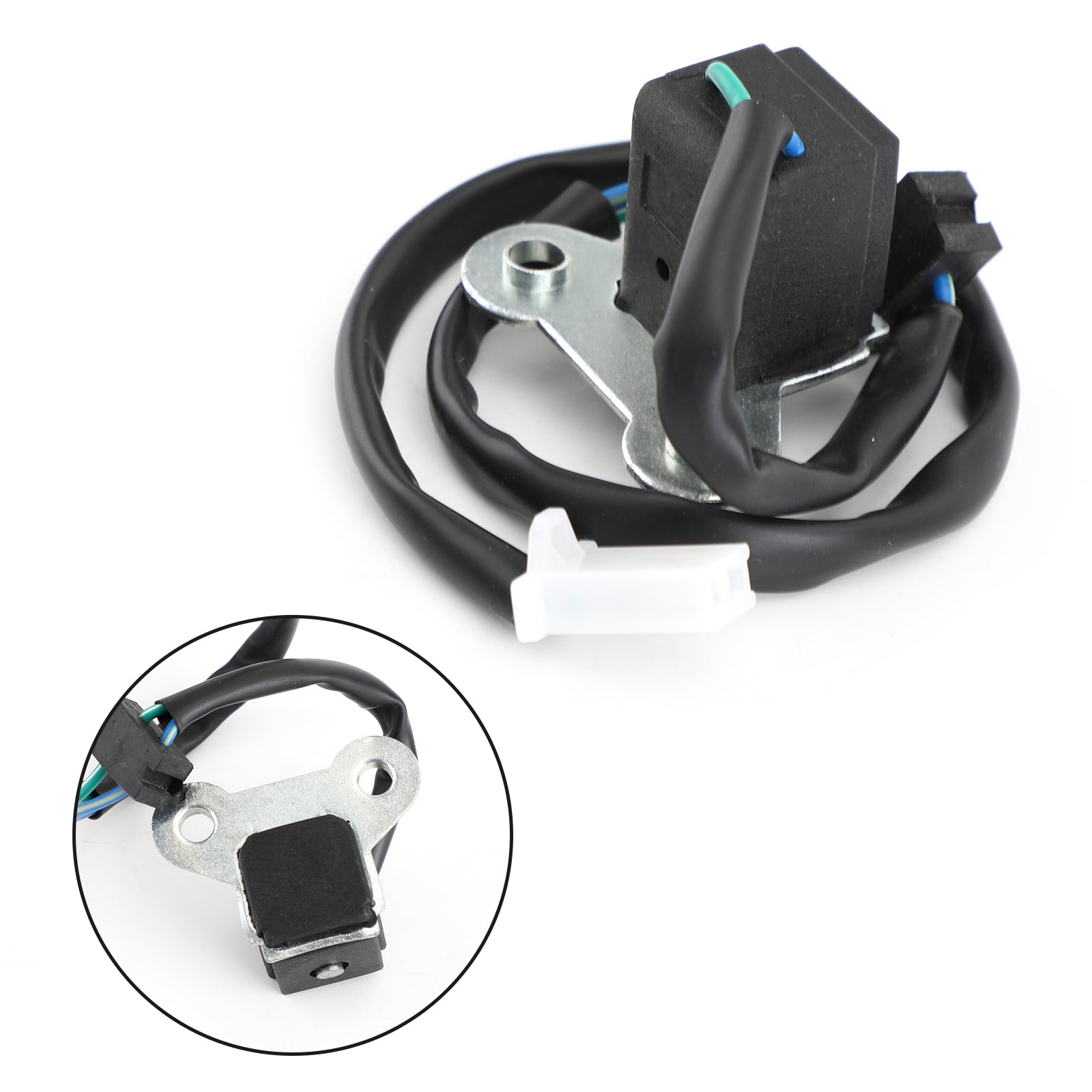

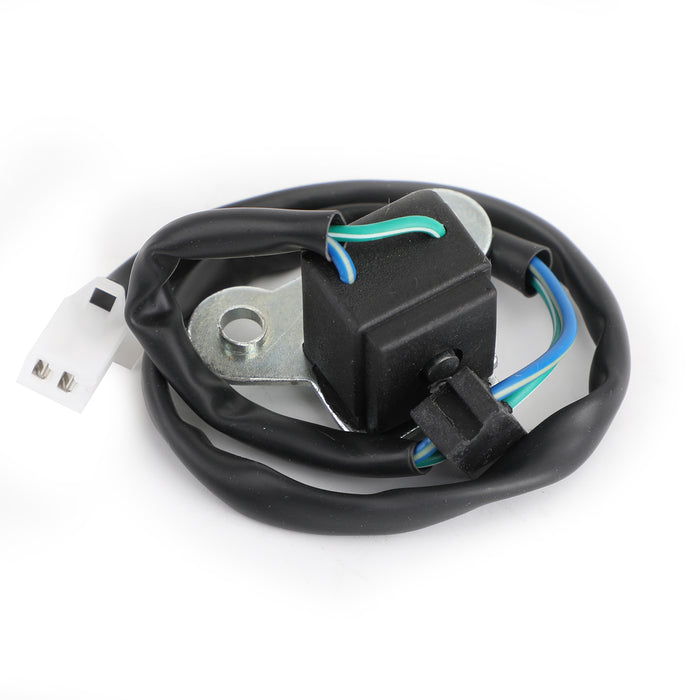

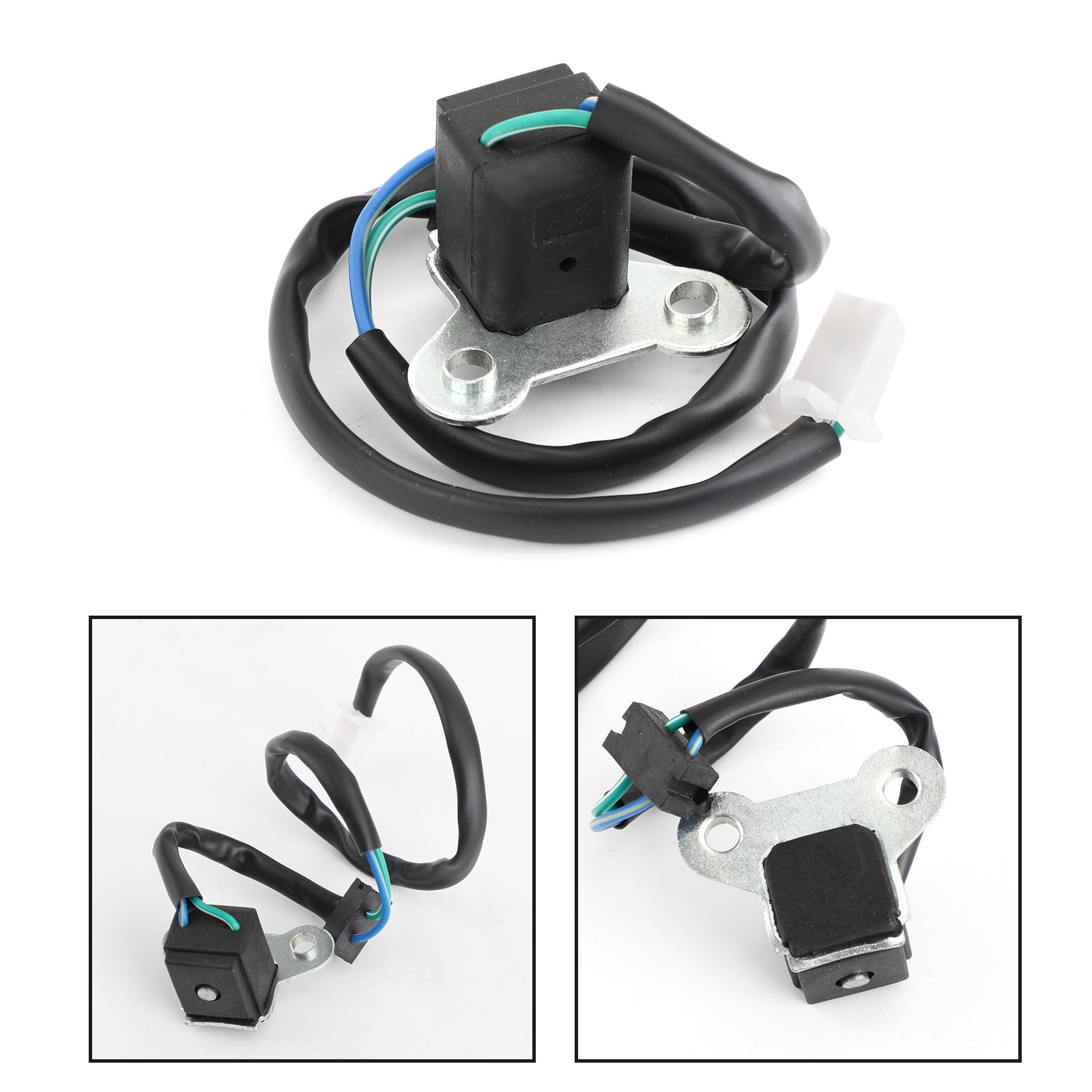

Stator Pulse Pickup Coil Fits Honda 30300-KJ9-005 30300-KN7-671 30300-KM1-014
Stator Pulse Pickup Coil Fits Honda 30300-KJ9-005 30300-KN7-671 30300-KM1-014
Regular price
$17.99 USD
Regular price
Sale price
$17.99 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil

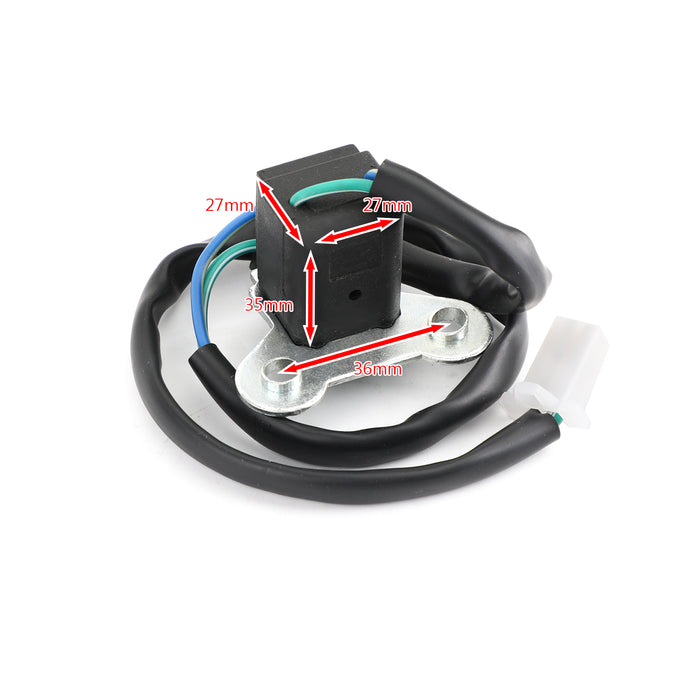

Dimensions:
Height: 27mm
Length: 35mm
Width: 27mm
Bracket center to center: 36mm
Wires length: Approx.410mm
Other specifications:
Number of wires: 2
Number of plugs: 1
Number of pins: 2
PART NUMBER(S):
30300-KJ9-005
30300-KN7-671
30300-KM1-014
VEHICLE MODELS FITMENT:
Fits Honda CH125 Elite 1984
Fits Honda CH125 Spacy 1984-1996
Fits Honda CH150 Elite 1985-1987
Fits Honda CH150 Elite Deluxe 1985-1986
Fits Honda CH250 Elite 1985-1988
Fits Honda CN250 Helix 1986-1987/1992-2001/2004-2007
Fits Piaggio HAXAGON GT-GTX 250 1998-2000
FEATURES:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
PACKAGE INCLUDED:
1x Pick up pulsar coil
NOTICE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
Number of wires: 2
Number of plugs: 1
Number of pins: 2
PART NUMBER(S):
30300-KJ9-005
30300-KN7-671
30300-KM1-014
VEHICLE MODELS FITMENT:
Fits Honda CH125 Elite 1984
Fits Honda CH125 Spacy 1984-1996
Fits Honda CH150 Elite 1985-1987
Fits Honda CH150 Elite Deluxe 1985-1986
Fits Honda CH250 Elite 1985-1988
Fits Honda CN250 Helix 1986-1987/1992-2001/2004-2007
Fits Piaggio HAXAGON GT-GTX 250 1998-2000
FEATURES:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
PACKAGE INCLUDED:
1x Pick up pulsar coil
NOTICE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
